WJD-0.5 Electric LHD Loader

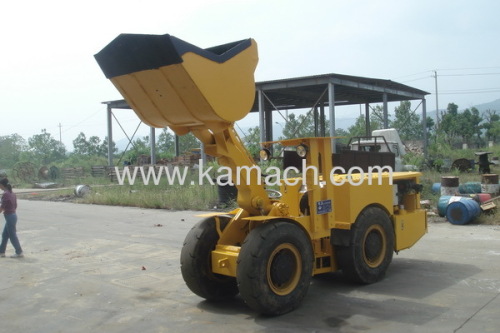

WJD-1 electric LHD loader is a front loader with no emission, low body and articulated frame, which is mainly designed and manufactured for the underground mining mechanized work. The loader is featured by small dimension, flexible operation and reliable performance, which is suitable for loading, transferring and unloading the soft rocks and ores during mine stopping and diverging in the metal mine. The bucket capacity is 0.5M3, the rated carrying ability is 1T, the max traction force is 20KN, the overall dimension is 4650x1000x2000mm, the weight is 4.5T .

Technical Parameter

1Bucket capacity: 0.5cbm

2Rated loading weight: 1000kg

3Max. Traction force: 20kN

4Max Shovel force: 18kN

5Travelling Speed: 0~7.5km/h (forward+reverse)

6Min. Ground clearance: 173mm

7Frame swing angle: ±7o

8Max. turning angle: ±36o

9Min. turning radius: 3182.5mm (outer)

10. Max. discharge height: 720mm

11. Max. discharge distance: 750mm

12. Wheelbase:2200mm

13. Angle of departure: 150

14. Tare weight: 3800kg

15. Cable available: 80m

16. Grade ability: ≥25

17. External dimensions (L*W*H): 4626mm*1000mm(shovel)/960mm(body)*1960mm

18. Tire size: 7.50-15

Air pressure: 0.6~0.7MPa

19. Electric Motor

Model:Y-180L-4

Power: 30kw

Voltage: 3 phase AC 380V/50Hz

Turning ratio: 1480r/min

20. Driving system:

Method: variable static hydraulic drive

Hydraulic pump: invertible Variable piston pump

Hydraulic motor: variable piston motor

Transmission: PCIOK gear transmission ratio 1.241

21. Brakes: Sealed wet multi-disc spring brakes, hydraulic release

22: Steering: hydraulic power steering

23. Travelling fuel tank: 62L

24. Shoveling fuel tank: 110L
